How Fume Extraction MIG Guns Work: A Detailed Guide

How Dangerous Are Welding Fumes?

Welding fumes are a complex mixture of fine particles and gases. The dangers of inhaling these fumes have been recognized for over a century; safety instructions from the 1920s advised welders to "keep your head out of the plume."

Today, the scientific understanding of this risk is more defined. The International Agency for Research on Cancer (IARC) has reclassified welding fumes as a Group 1 carcinogen, a conclusion that has profoundly influenced occupational health and safety regulations worldwide. Agencies such as OSHA, CCOHS, and HSE now provide specific guidelines.

To effectively manage the risks from welding and industrial fumes, the Hierarchy of Controls is the recommended method. Fume extraction guns, the focus of this article, fall under this hierarchy's engineering controls. They are designed to capture fumes at the source, preventing them from entering the welder's breathing zone.

The Hierarchy of Controls-OSHA

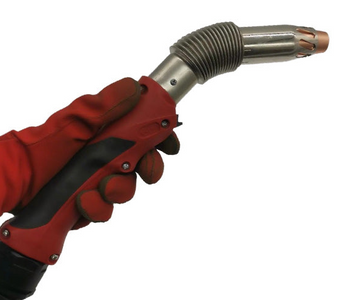

Fume Extraction Gun Key Features Breakdown

The overall design of a fume extraction gun is based on a standard MIG gun, but with specific modifications to facilitate smoke capture. These key design changes focus on three main areas:

1. Shroud (Smoking Shield)

The fume nozzle, often called the shroud, is a critical component of the fume extraction MIG gun. It serves as the primary point of smoke capture. Two main designs exist for the shroud:

Integrated: The shroud completely envelops the regular welding nozzle, acting as both the nozzle and the shroud in one piece.
Separate: The shroud functions as an intermediary piece, connecting the nozzle to the gooseneck of the gun.

These shrouds are typically made from durable materials like brass or copper, and sometimes formed from sheet metal. To create the pressure differential needed to draw in fumes, they are always designed with openings or perforations.

2. Gooseneck

The gooseneck of the gun is enclosed in a protective shell, creating a hollow structure around the original MIG gun neck. Fumes captured by the shroud are drawn through this empty space and flow toward the handle. This channel connects the shroud to the handle, forming a complete internal fume extraction pathway. This structural addition makes the fume extraction gun appear more bulky and robust compared to a conventional MIG gun.

3. Cable and Hose Connection

The cable and hose connection is noticeably thicker than that of a standard MIG gun. The overall cable assembly typically features coaxial power cables with heavy-duty swaged copper connections. At the rear of the torch, a 'Y' or 'T' hose connection serves as the point where the captured smoke is diverted into a separate hose that leads to the vacuum system. It's worth noting that 90° 'T' connections have been observed to cause a significant slowdown in airflow at that point, which could be a consideration for optimizing extraction efficiency.

Common Concerns: Shielding Gas, Weight, and Material Suitability

1.Will a Fume Gun Negatively Impact Shielding Gas?

This concern is valid; a lack of shielding gas can lead to weld defects like porosity, inclusions, and excessive spatter.

To understand why this is not typically an issue with a well-designed fume extraction gun, it's essential to look at the behavior of both the shielding gas and the welding fumes.

Shielding Gas: Protective gases, such as argon or a mixed gas, are denser than air. They exit the gas nozzle at a relatively low and stable velocity, creating a consistent gas shield that tightly blankets the weld pool.
Welding Fumes: Fumes are generated by the intense heat of the arc and consist of extremely fine particles. These particles are less dense and tend to rise with the hot air, primarily forming just outside the shielding gas envelope. This means the gas and the fumes are in separate, stratified layers.

Secondly, the position of the shroud is important. It is strategically placed on the outside of the welding nozzle, not directly over the weld joint. The problem with gas disruption usually occurs when the fume shroud is positioned too close to the weld joint, which is a flaw in design or application, not in the concept itself.

2.Is It Too Heavy?

The initial impression of a fume extraction gun is often that it feels bulky and heavy. This is a valid concern, as the added vacuum components do increase its weight and size.

To put this into perspective, let's look at some real-world examples:

Light-duty MIG gun: Lincoln Magnum style 200 amp gun weighs approximately 2.5 kg.
Heavy-duty MIG gun: Tweco style #4 400 amp gun weighs about 5 kg.
Fume Extraction MIG gun: 501D 500-amp fume extraction gun weighs around 5.3 kg.

As you can see, the weight difference between a heavy-duty standard MIG gun and a fume extraction gun is minimal. If your work already involves a heavy-duty gun, the transition to a fume extraction model will have a negligible impact on welder fatigue.

3. Can Fume Extraction Guns Extract Everything?

In a broad sense, welding fumes are a complex mixture of metals, metallic oxides, silicates, and fluorides. These are generated from various sources during the welding process:

The base material: The metal being welded.
Coatings and paints: Any coatings applied to the base material.
The filler metal: The consumable electrode.

Certain materials produce particularly hazardous fumes. For instance, when welding:

Stainless steel, toxic hexavalent chromium is produced.
Cadmium- or lead-coated steel
Zinc-coated (galvanized) steel, which generates zinc oxide fumes.

It is important to note that while fume extraction guns are highly effective at capturing these particulate matters, they are not designed to remove all byproducts. The intense heat and ultraviolet radiation from the arc can also break down surrounding air and shielding gas, producing harmful gases such as:
