What is Welding Polarity?
Welding polarity refers to the direction in which electrical current flows within a welding circuit, particularly in direct current (DC) welding. It significantly influences the heat distribution between the electrode and the workpiece, directly impacting weld penetration, arc stability, and overall weld quality. Selecting the correct polarity—whether Direct Current Electrode Positive (DCEP) or Direct Current Electrode Negative (DCEN)—is vital for optimizing weld characteristics, reducing defects, and achieving consistent, reliable welding performance.

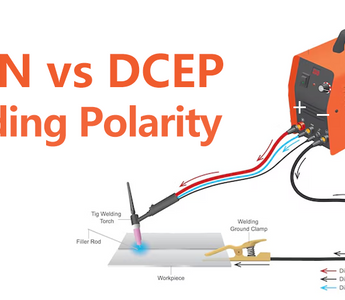

DCEN vs.DCEP
DCEN vs DCEP: Current Direction & Polarity Effects
Note: The following explanations of current flow direction are based on electron flow, not on conventional current direction used in traditional electrical engineering.
What is straight polarity?
Straight polarity in welding refers to Direct Current Electrode Negative (DCEN). It is characterized by the following:
-
Polarity Setup: Electrode connected to the negative terminal, and workpiece connected to the positive terminal.
-
Current Flow Direction: From the electrode to the workpiece.
-
Heat Distribution: Approximately 66%~70% of the heat is concentrated on the workpiece.
-
Weld Profile: Produces a wide and shallow bead with less penetration depth.
-
Typical Uses: Commonly used for welding thin materials and precision applications, such as TIG welding on steel, stainless steel, and copper.
What is reverse polarity?
Reverse polarity in welding refers to Direct Current Electrode Positive (DCEP). It is characterized by the following:
-
Polarity Setup: Electrode connected to the positive terminal, and workpiece connected to the negative terminal.
-
Current Flow Direction: From the workpiece to the electrode.
-
Heat Distribution: Approximately 66%~70% of the heat is concentrated on the electrode.
-
Weld Profile: Produces a narrow and deep weld bead with strong penetration.
-
Typical Uses: Commonly used in MIG welding and stick welding, especially for thicker materials where strong, clean welds are required.
How to Choose the Right Welding Polarity
Polarity in TIG Welding
TIG welding uses a non-consumable tungsten electrode, which serves as the negative terminal in DCEN polarity. In this configuration, electrons flow from the tungsten electrode to the workpiece. As they impact the base metal, the surface of the workpiece acts as the anode and experiences greater resistance. This results in intense local heating, melting the base material effectively. The arc energy is concentrated at the steel surface, while the tungsten remains relatively cool and stable.
DCEN in TIG Welding
Polarity in MIG Welding
In MIG welding, DCEP is commonly used because stable and efficient heat concentration on the wire promotes spray transfer. (For a detailed explanation of metal transfer modes in GMAW, see our guide on GMAW Metal Transfer Modes) .This results in a smooth arc, fine droplet transfer, and deep weld penetration.
Using DCEN often leads to globular transfer. The electrode receives less heat, resulting in irregular, large molten droplets that fall inconsistently into the weld pool. The arc is harder to control and may behave erratically. With AC, the constant switching of current direction (50–60 times per second) makes the arc even more unstable, and consistent spray transfer becomes nearly impossible.
DCEN vs DCEP in MIG Welding
Polarity in Stick Welding
Stick welding most often uses DCEP, where electrons flow from the workpiece to the electrode, causing heat to concentrate on the electrode. This setup results in strong arc performance and deep weld penetration. However, polarity also depends on the type of electrode used. For example, basic-coated electrodes are optimized for DCEP, while some rutile-coated types may operate on AC or DCEN. Polarity recommendations are typically printed on the electrode packaging.
DCEN can be useful for thin material where too much heat may cause burn-through. It allows faster travel and shallow penetration. Using DCEN with an E6013 rod works well for welding thin steel.
Welding road package
table below summarizes common welding processes and their recommended polarity settings:
| Welding Process | Recommended Polarity | Notes |
|---|---|---|
| Stick Welding (SMAW) | DCEP (mostly) | Provides deeper penetration; some rods can use AC or DCEN as needed. |
| TIG Welding (GTAW) | DCEN | DCEN for most metals (steel, stainless) |
| MIG Welding (GMAW) | DCEP | Standard polarity for stable arc and good penetration. |
| Flux-Cored Welding | Depends on wire type | Gas-shielded wire: DCEP; Self-shielded wire: often DCEN. |
Use the correct polarity for your welding process and filler material to ensure optimal performance and quality results.
FAQs
Q: What polarity should I use for an aluminum spool gun?
A: Aluminum spool gun welding typically uses DCEP (Direct Current Electrode Positive). This polarity ensures proper arc stability and metal transfer. (For more details, see our blog on How to Weld Aluminum with a Spool Gun.)
Q: Can TIG welding with DCEN be used for aluminum?
A: No, aluminum has an oxide layer that requires the cleaning action provided by AC polarity. AC alternates between cleaning (positive half-cycle) and penetration (negative half-cycle), making it ideal for welding aluminum with a TIG torch.
Q: What polarity is used for plasma cutting?
A: Plasma cutting requires DCEN polarity. In this setup, the electrode (torch) is connected to the negative terminal, and the workpiece to the positive. This ensures heat is focused on the workpiece, not the torch. Reversing the polarity can instantly damage the consumables or even destroy the torch.
